Don’t know how to refill toner? Here’s a step-by-step tutorial to help you easily refill your toner cartridge.
You’re rushing to print a document when your printer suddenly flashes lights and a “Low Toner” warning pops up on the screen. Is it possible to refill HP toner cartridges? Can I refill my own toner cartridge?
This comprehensive guide comes to the rescue—complete with tools, waste toner removal, and refilling steps, along with illustrated instructions and pitfall avoidance tips—so you can easily handle it, saving time and worry.
Below are the steps and precautions for refilling compatible toner cartridges. Original toner cartridges do not support refilling. It’s recommended to turn off the printer before refilling.
I. Tools and Materials
1. Basic Tools
Slotted screwdriver or angled tweezers, soft-bristled brush or blower, disposable gloves, and a medical mask.
2. Materials
Compatible Toner Powder
Must match the toner cartridge model (e.g., CF259A cartridge uses 59A toner powder, 415A cartridge uses 415A toner powder) to avoid mixing different brands of toner powder, which can cause clumping.
Some compatible toner cartridges are easy to refill toner and have a built-in toner port that does not need to be disassembled.
II. Toner Refilling Process (Using the HP CF415A as an Example)
1. Cleaning the Waste Toner Container (Key Step)

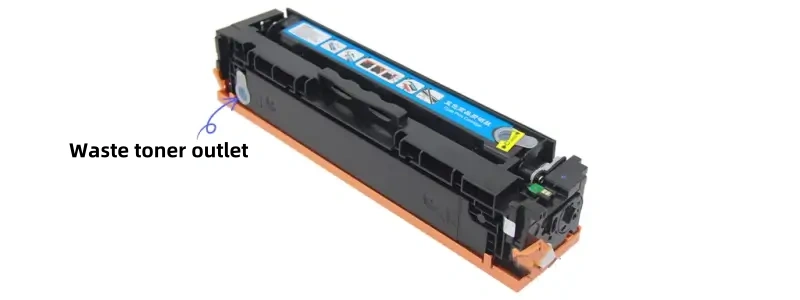

Locate the Waste Toner Port
Toner cartridges typically have two caps on different sides, the smaller of which is the waste toner port (some models have a label indicating this).

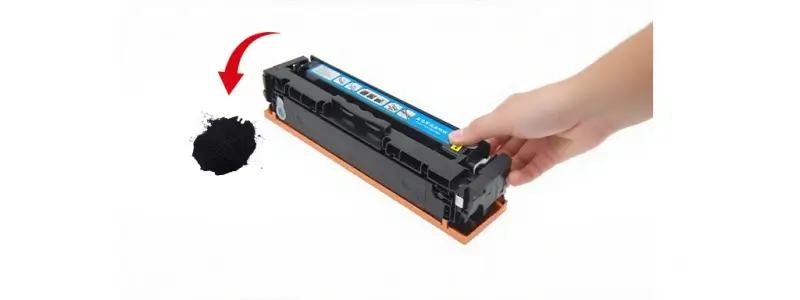

Ejecting Waste Toner
Hold the toner cartridge upright with the waste toner port facing downward. Gently tap the cartridge to loosen the waste toner. Remove the cap and pour out all the waste toner. Use a brush or air blower to clean any remaining waste toner from the inside.

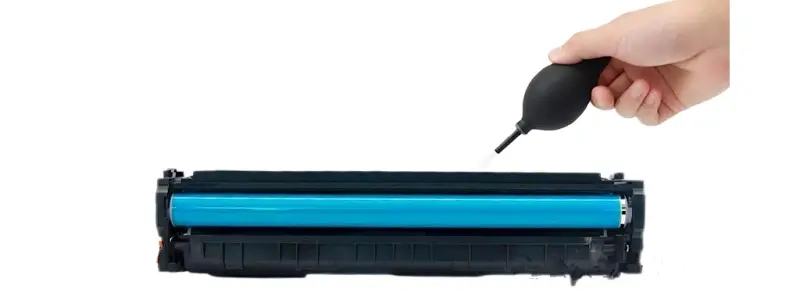

Deep Cleaning
Use a fine, long-bristled brush to penetrate the gaps at the bottom of the waste toner container. Use an air blower to thoroughly remove accumulated waste toner particles to prevent leakage and wear on the OPC drum.
2. Toner Refilling

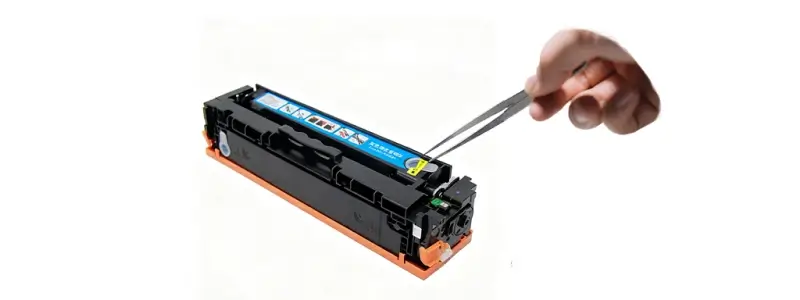

Removing the Toner Cap
Open the larger toner refill port (some screws may need to be removed) and pry open the cap with a flat-blade screwdriver or tweezers.

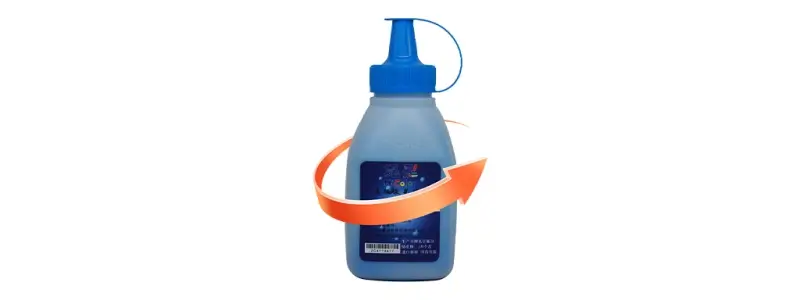

Shaking the Toner Bottle
Shake the newly installed toner bottle from side to side for 30 seconds to evenly distribute any toner clumps.

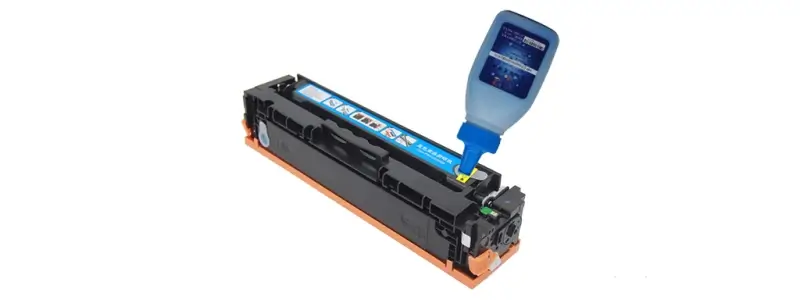

Precise Filling
Insert the bottle cap into the toner refill port and slowly pour in toner until it is 80% full (approximately 60g for the CF415A), avoiding spillage.
Seal and Shake Evenly
Securely close the toner refill port and shake the toner cartridge 5-8 times horizontally from side to side to evenly distribute the toner. Install the printer.
III. Tips for Special Machines
1. Color Printers
For printers like the HP M452dn, you must replace the corresponding color chips (black/cyan/magenta/yellow), otherwise the device will still indicate a toner shortage.
2. Disable Toner Cartridge Protection
On some models, after installing a new toner cartridge and replacing the chip, the printer may display the message “The indicated cartridge has been blocked by the printer firmware because it contains a non-HP chip. This printer can only be used with new or reused cartridges that contain a new or reused HP chip…” In this case, you need to disable the printer’s toner cartridge protection and try again after restarting the printer.
IV. Other Precautions
1. Environmental Protection
Operate in a well-ventilated space to avoid toner dust. It is recommended to perform air cleaning outdoors.
2. OPC Drum Protection
Avoid direct contact with the OPC drum (green or blue roller) with your fingers. Fingerprint residue can cause white streaks in prints.
After disassembly, wrap the OPC drum with a black cloth to prevent prolonged exposure to strong light.
3. Testing and Adjustment
Before printing a test page, perform “Calibration” (Path: Printer Driver → Maintenance → Calibration).
If there is dust, check that the waste toner bottle is clean. If the printing is blurred, try adjusting the printer’s “Toner Density” setting.
Summary:
The above are the key points for refilling compatible HP color toner cartridges: prepare your tools, remove waste toner, and refill accurately. For special printer models, pay attention to resetting and chip handling, and take precautions during operation. Follow these steps and you’ll easily get started. If you encounter any questions, please feel free to contact us by leaving a message and we’ll help you resolve your concerns.
The steps for refilling HP 201A/410A/203A/205A/206A/207A/414A/415A/416A toner cartridges are similar.
