How to replace the toner cartridge when the Ricoh copier is short of toner?
The print cartridge refers to the toner cartridge or ink cartridge. The toner in the toner cartridge is limited. As the number of printed pages increases, the toner gradually decreases. After the toner is exhausted, the printer screen prompts that the toner is insufficient, which means that the printer toner is insufficient. Please refill toner or replace the toner cartridge. The steps for replacing the toner cartridge of the Ricoh MP1610 printer are as follows:
1. Turn off the power of the Ricoh printer first.

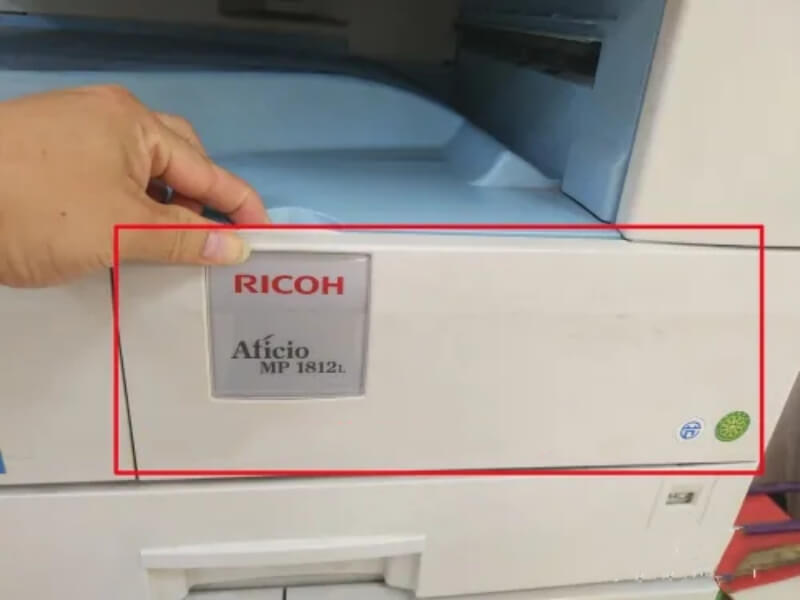

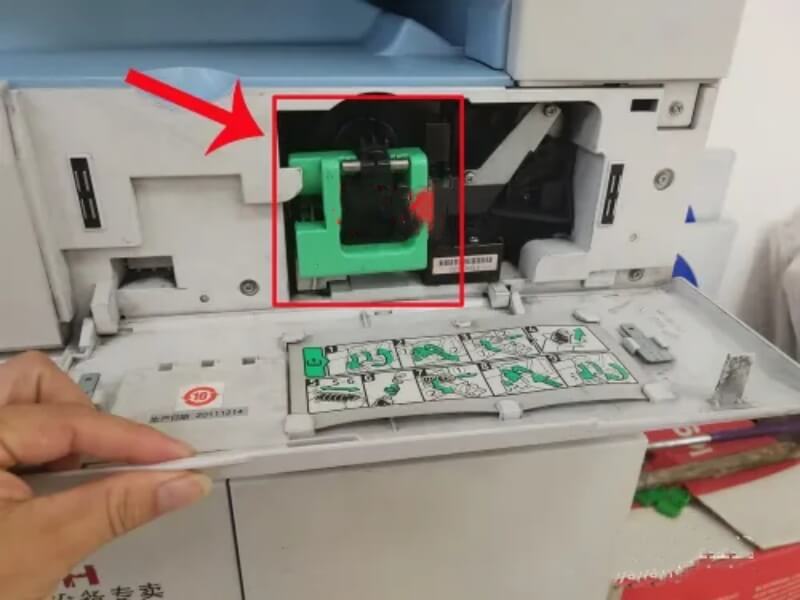

2. Open the front cover of the copier.

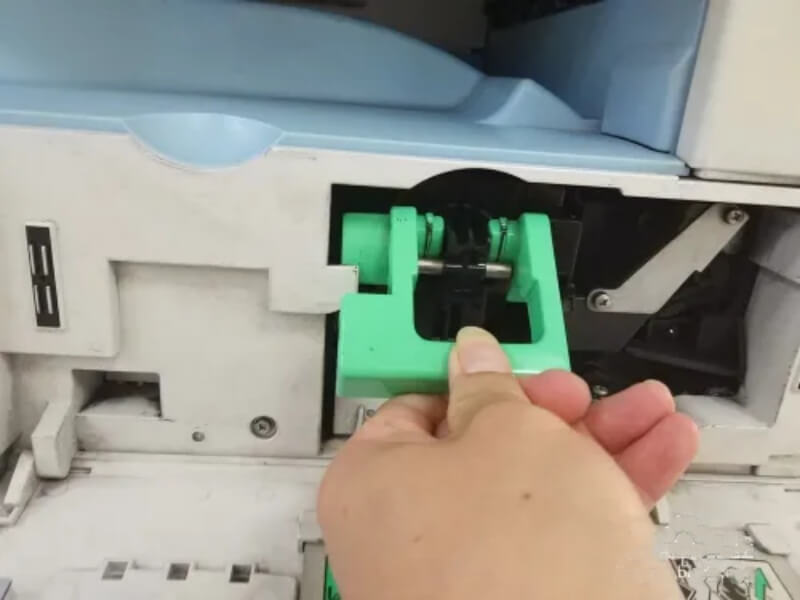

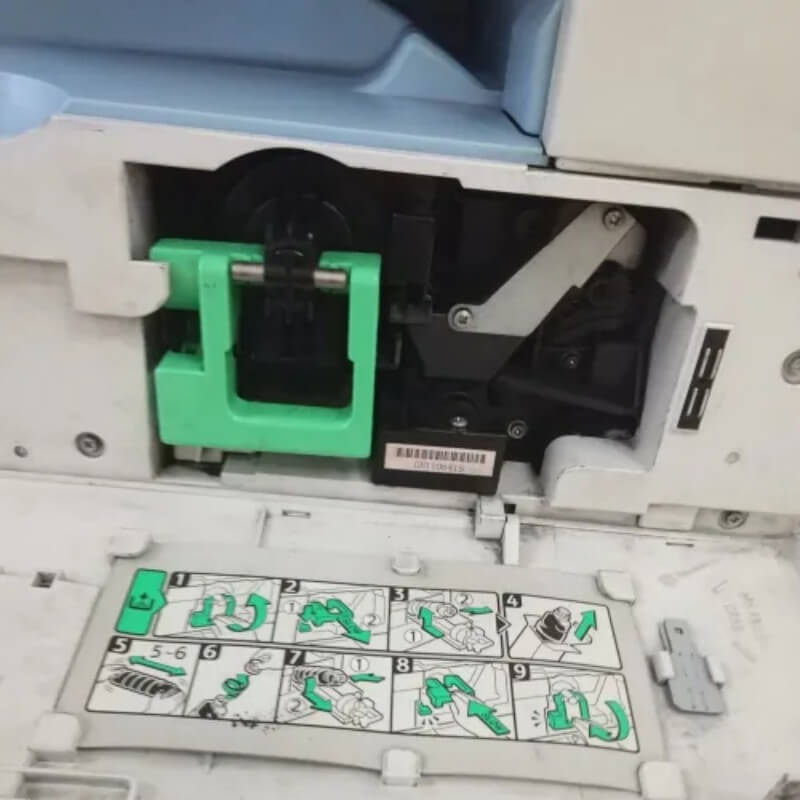

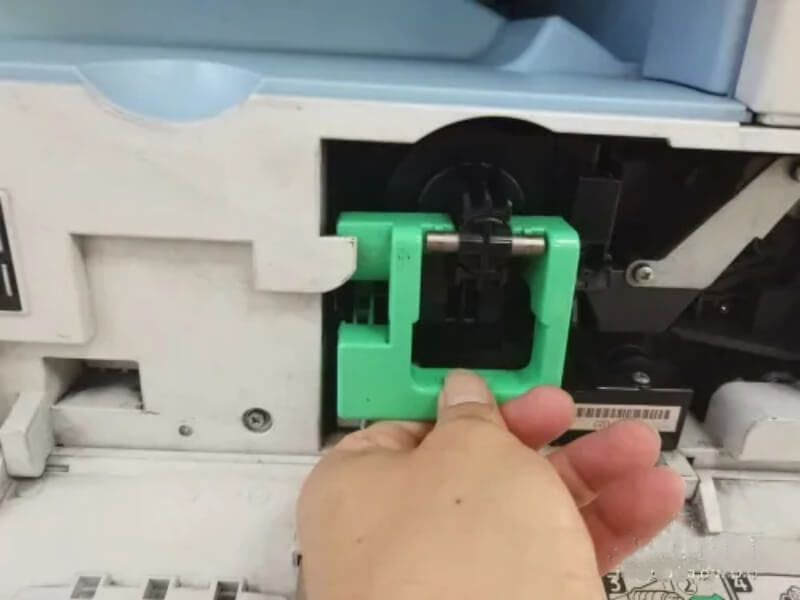

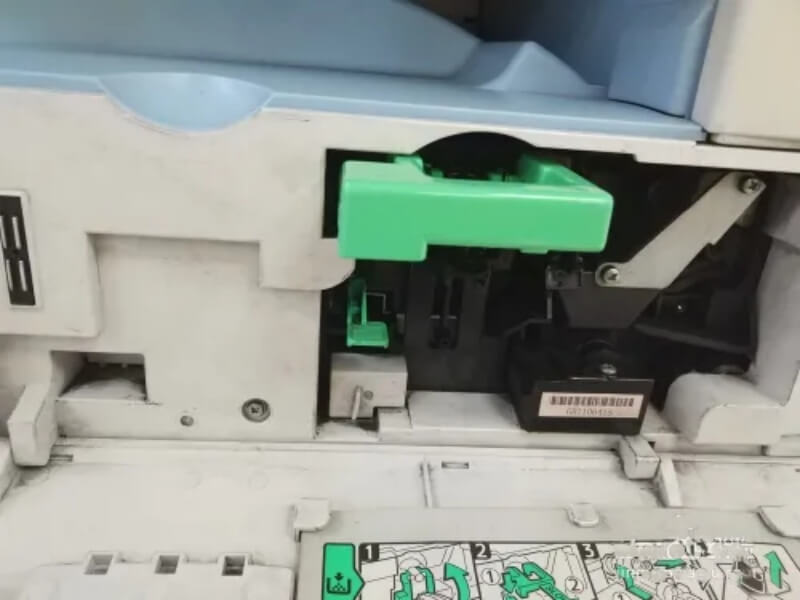

3. First, pull up the movable green handle outside the toner cartridge rack and pull the green handle to a parallel position, as shown in the figure

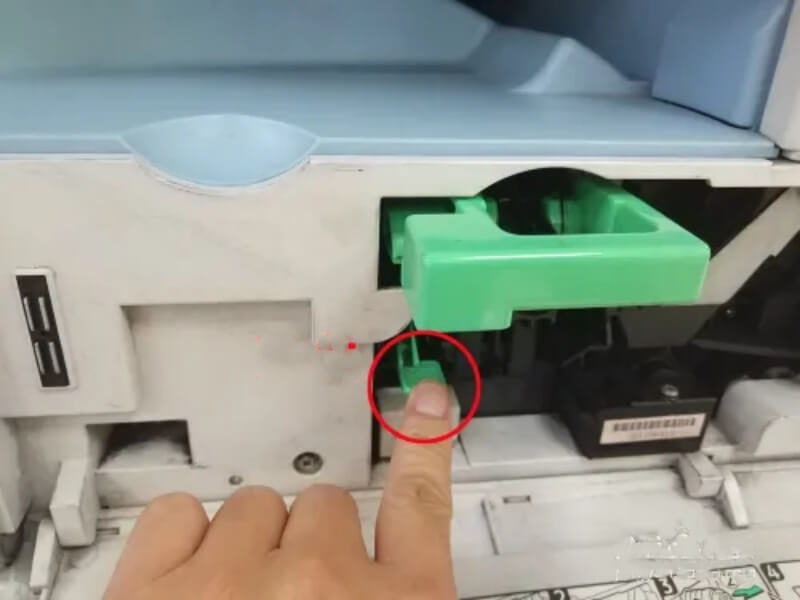

4. There is a button switch under the green handle, press it with your finger.

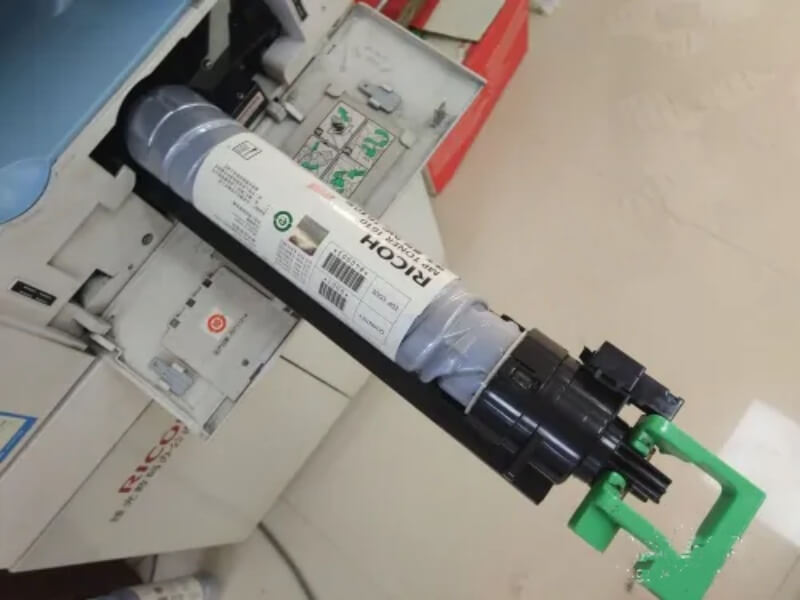

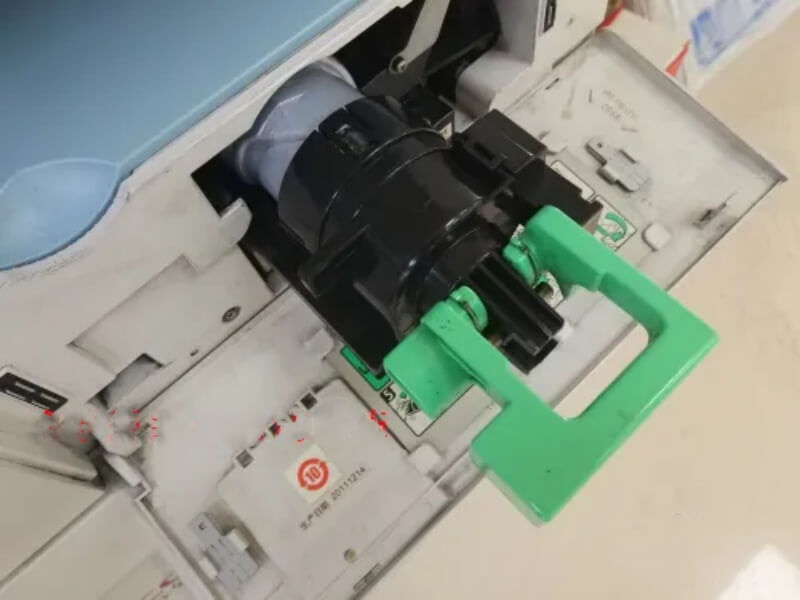

The toner cartridge rack of the copier will pop out automatically, and then pull it out, as shown in the figure
5. Pull out the toner cartridge.

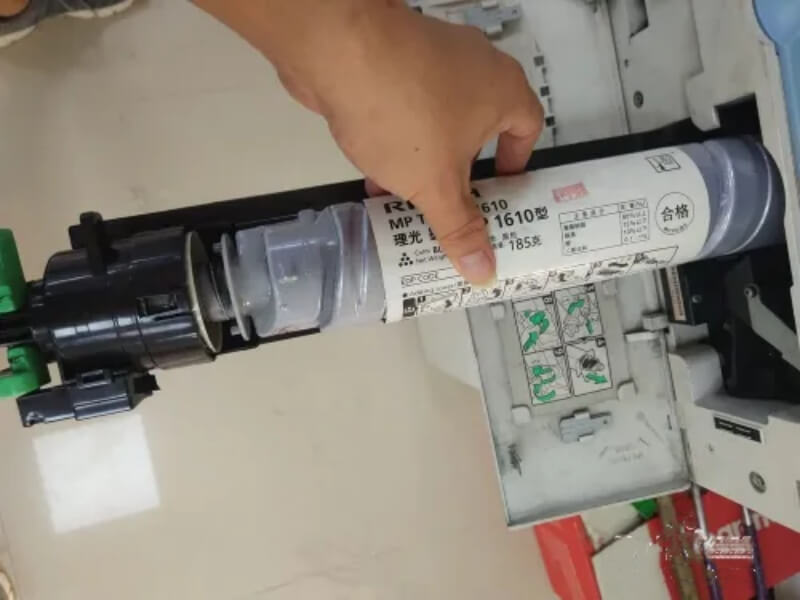

6. Let’s take out the used toner cartridge first, and then take it out by gently pulling the toner cartridge in the direction of the copier.

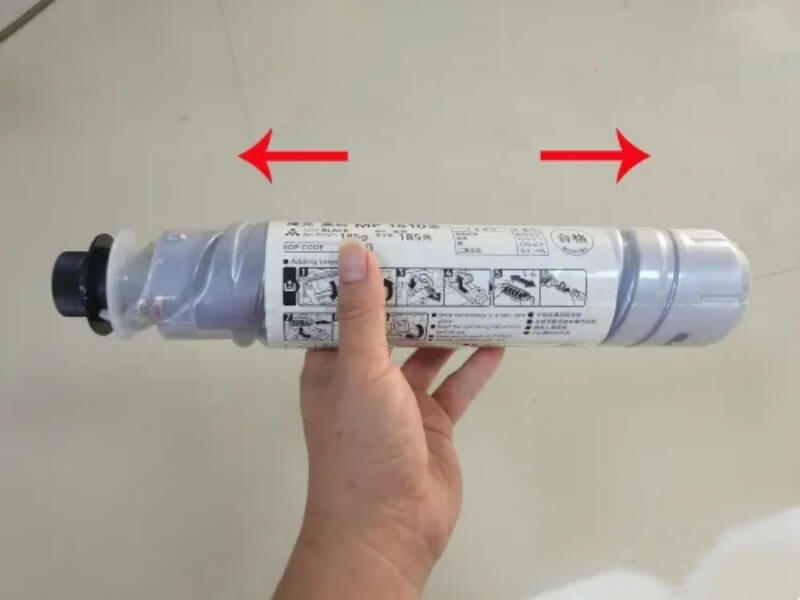

7. Take out the new toner cartridge, hold it parallel with your hands, and shake it left and right. Generally, it takes about 6 times.

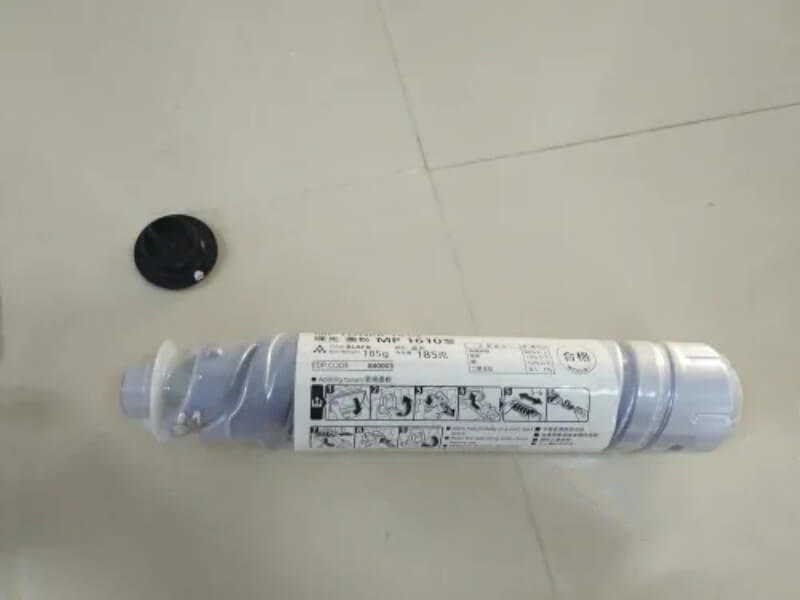

8. Take out the toner cartridge cover. As shown in the figure below

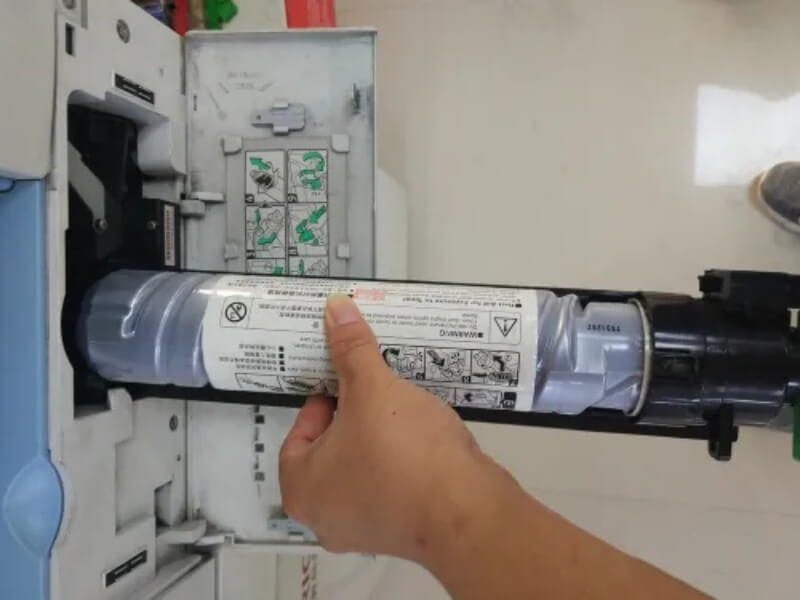

9. Then put the toner cartridge into the toner cartridge rack of the copier, with the mouth of the toner cartridge facing outward, and gently pull it into the entrance of the toner rack, as shown in the figure.
10. Then use the green handle to push the toner cartridge rack into the copier. After pushing it in, you can hear a “click”, indicating that the card is in place.

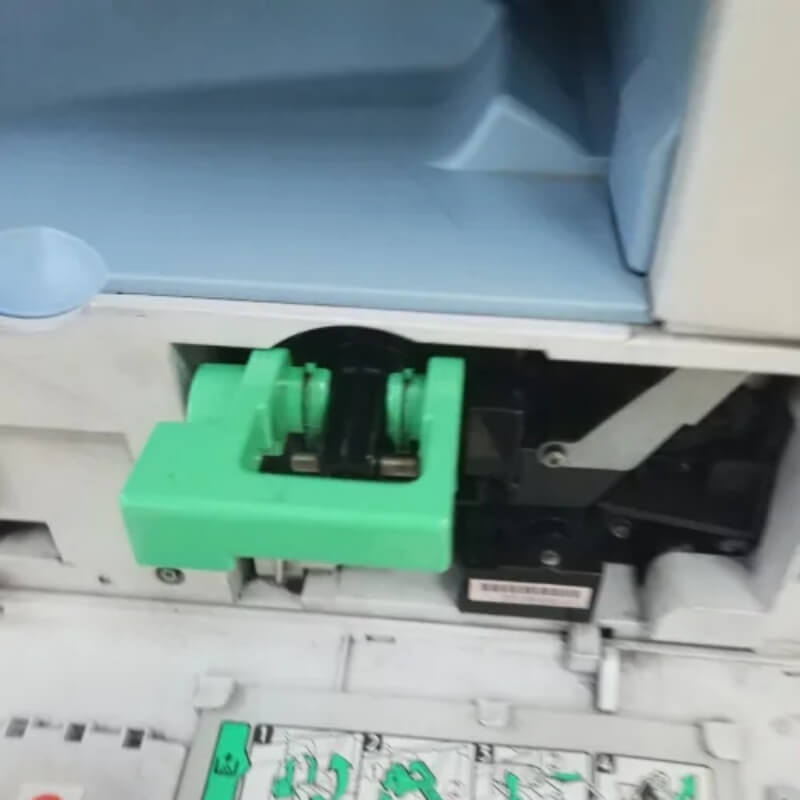

11. Pull the green handle down and close the copier cover.
After closing the copier cover, we turn on the power of the Ricoh copier. At this time, the screen will display “Loading toner”. This inspection process takes about 3 minutes, so be patient.
After the inspection process is successful, the warning light for lack of toner goes out, and when the screen displays “Ready”, you can copy normally.
The finishing work should be done well, and please pay attention to environmental protection. Screw the cap of the new toner cartridge onto the old one and throw it into the trash.
People also ask:
Are the steps for replacing toner cartridges for the following printers the same as above?：
Ricoh Aficio MP1610L/MP1610LD/MP1800/MP1801/MP1810L/MP1810LD/MP1811L/MP1812L/MP1911/MP2000/MP2000SP/MP2011LD/MP2012LD/A2015/A2018/A2018D/2020/2020D/2015L
Answer: Yes, same, just follow the steps above.
